F7 Model MultiScale (Custom Order)
For 7-string custom guitars.Available as Right or Left.
Exciting news!
The world-famous EverTune bridge is now available in a multiscale design. To meet the needs of forward-thinking players who want to add EverTune's unparalleled tuning stability and intonation to the ergonomic and sonic benefits of their multiscale instruments, we are offering, on a custom-order basis, the MultiScale EverTune.
Every MultiScale EverTune bridge is built to the customer's exact specifications, which include shortest scale length, longest scale length, straight fret, and fretboard radius, along with intended tuning and string gauges.
Some important points to consider:
- This custom order of a MultiScale EverTune bridge is non-refundable. All sales are final.
- Every customer is 100% responsible for guaranteeing the accuracy of all specifications provided (i.e. the scale lengths, location of straight fret, neck radius, etc), as EverTune will produce exactly what is specified by the customer, and EverTune has no way of validating the information provided.
- The production lead time is estimated to be 8 to 12 weeks, although supply chain issues can result in longer times.
- Customers will be notified when their Multiscale EverTune bridge has been received at EverTune headquarters and cleared for shipment.
- Customers are responsible for the installation of their MultiScale EverTune bridge. EverTune will provide customized CAD and DXF files for each bridge to facilitate the installation process. See the MultiScale Installation resource here: resources/multiscale/installation_instructions/
EverTune retail:$770.00
Please use our String Tension Gauge Calculator for your desired tuning and string gauges to verify the correct SADDLE TYPE (STANDARD, HIGH or LOW) is selected for each string.
View explanation of all options here: Saddle Tension Selection / Bridge Rebuild Options (?)
Should the bridge need custom high or low tension saddle modules for certain strings -- or if you want different color option for the faceplate or any saddles -- we charge one $30 fee to swap them out at build time instead of $50 per saddle module when buying them separately.
(leave request in notes below)
Please use our String Tension Gauge Calculator for your desired tuning and string gauges to verify the correct SADDLE TYPE (STANDARD, HIGH or LOW) is selected for each string.
View explanation of all options here: Saddle Tension Selection / Bridge Rebuild Options (?)
Should the bridge need custom high or low tension saddle modules for certain strings -- or if you want different color option for the faceplate or any saddles -- we charge one $30 fee to swap them out at build time instead of $50 per saddle module when buying them separately.
(leave request in notes below)
Included with each bridge
Every new F7 Model MultiScale EverTune bridge consists of the following:
- 1x F7 Model MultiScale Faceplate
- 7x Tension Modules (installed)
- 7x Action Screws (installed)
- 7x Intonation Screws (installed)
- 1x Comb (installed)
Every new F7 Model MultiScale EverTune bridge also includes the following:
- 2x Mounting Plates
- 4x Mounting Plate Screws
- 1x Foot Plate

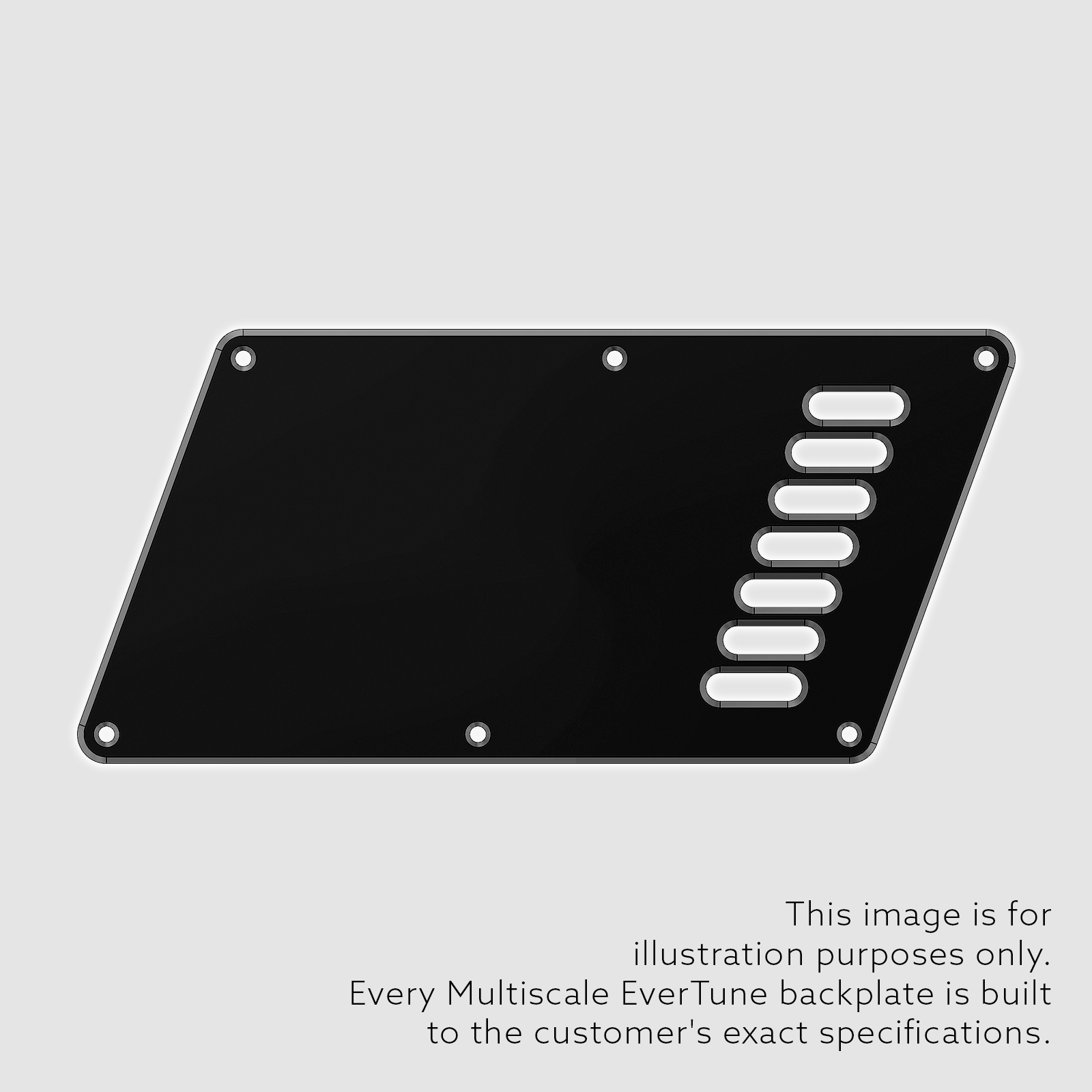

- 1x Backplate (Black Plastic)
- 6x Backplate Screws (Black)
- 1x Hex Tuning Key (2.5mm)
- 7x extra Action Screws
(If the installed set of action screws is 8mm then the service pack will have 10mm screws; if the installed set is 10mm then the service pack will have 8mm screws.)
- 1x Owners Manual (Printed)
Installation notes
Minimum Body thickness for a F7 Model MultiScale install is 1 3/4”.
Any guitar body thickness less than 1 3/4” will require the foot plate to be installed on top of a custom back plate riser to ensure proper positioning of the modules.
Zone 2 Variation Tolerance
Zone 2 can have some slight variation. If the pitch change is less than 7 cents from playing position to one half turn down into Zone 2 then the module's Zone 2 is within spec.
One half turn means loosening the tuning peg at the headstock by a turn of the wrist.
