F7 Model MultiScale (Production)
For 7-string MultiScale guitars.Right-Handed.
Will EverTune fit my guitar? | Which model should I get? | Can I install this myself?
The F7 MultiScale Production bridge brings EverTune to 7-string MultiScale guitars at a standard production price.
Until now, every MultiScale EverTune bridge was a custom order — CNC-machined to each customer's exact specifications at a much higher price. The F7 MultiScale Production model changes that: a factory-produced MultiScale bridge built to one proven specification, stocked in multiple finishes and assembled with the same tension modules as every EverTune bridge.
Production specifications: 20.39° bridge angle and 16" radius. The reference design is a 25.5"–27" scale with a straight 9th fret — and because equal scale intervals with the same straight fret produce the same bridge angle, a build like 26"–27.5" with a straight 9th fret fits this bridge just as well. To verify which saddle tensions your tuning and string gauges require, please consult our String Tension Gauge Calculator.
Need a different MultiScale configuration? The F7 Model MultiScale (Custom Order) remains available, built to your exact specifications. And unlike custom MultiScale bridges, the production model offers individual replacement parts — faceplate, footplate, small comb, large comb and backplate in black plastic or anodized aluminum — all found on our Parts page.
For routing, the Production MultiScale F7 Template set is available on our Templates page, and includes the templates and all hardware.
EverTune retail:$450.00
Please use our String Tension Gauge Calculator for your desired tuning and string gauges to verify the correct SADDLE TYPE (STANDARD, HIGH or LOW) is selected for each string.
View explanation of all options here: Saddle Tension Selection / Bridge Rebuild Options (?)
Should the bridge need custom high or low tension saddle modules for certain strings -- or if you want different color option for the faceplate or any saddles -- we charge one $30 fee to swap them out at build time instead of $50 per saddle module when buying them separately.
(leave request in notes below)
Please use our String Tension Gauge Calculator for your desired tuning and string gauges to verify the correct SADDLE TYPE (STANDARD, HIGH or LOW) is selected for each string.
View explanation of all options here: Saddle Tension Selection / Bridge Rebuild Options (?)
Should the bridge need custom high or low tension saddle modules for certain strings -- or if you want different color option for the faceplate or any saddles -- we charge one $30 fee to swap them out at build time instead of $50 per saddle module when buying them separately.
(leave request in notes below)
Included with each bridge
Every new F7 Model MultiScale (Production) EverTune bridge consists of the following:
- 1x F7 Model MultiScale Faceplate (Production)
- 7x Tension Modules (installed)
- 7x Action Screws (installed)
- 7x Intonation Screws (installed)

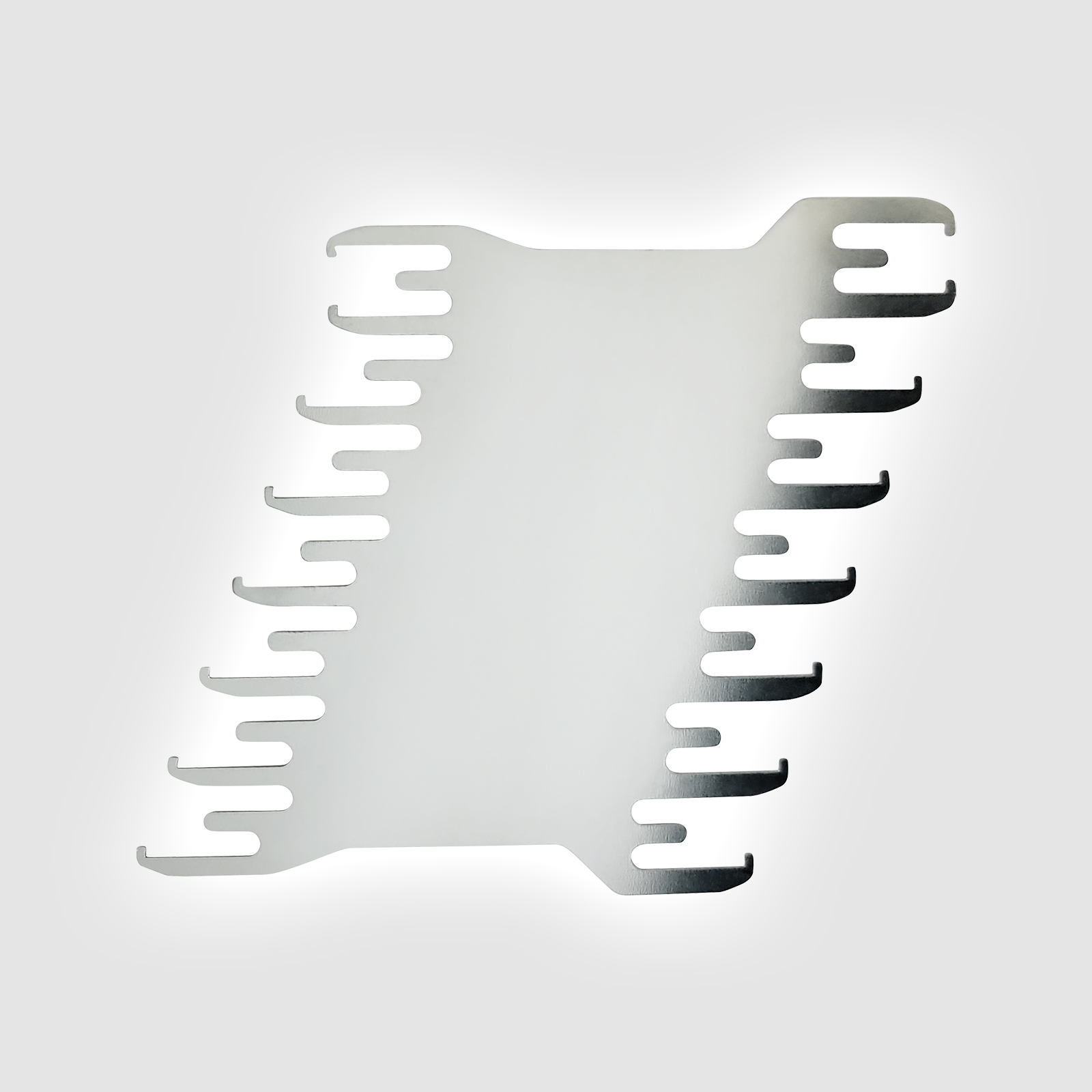

- 1x Large MultiScale Comb (installed)
Every new F7 Model MultiScale (Production) EverTune bridge also includes the following:
- 2x Mounting Plates
- 4x Mounting Plate Screws

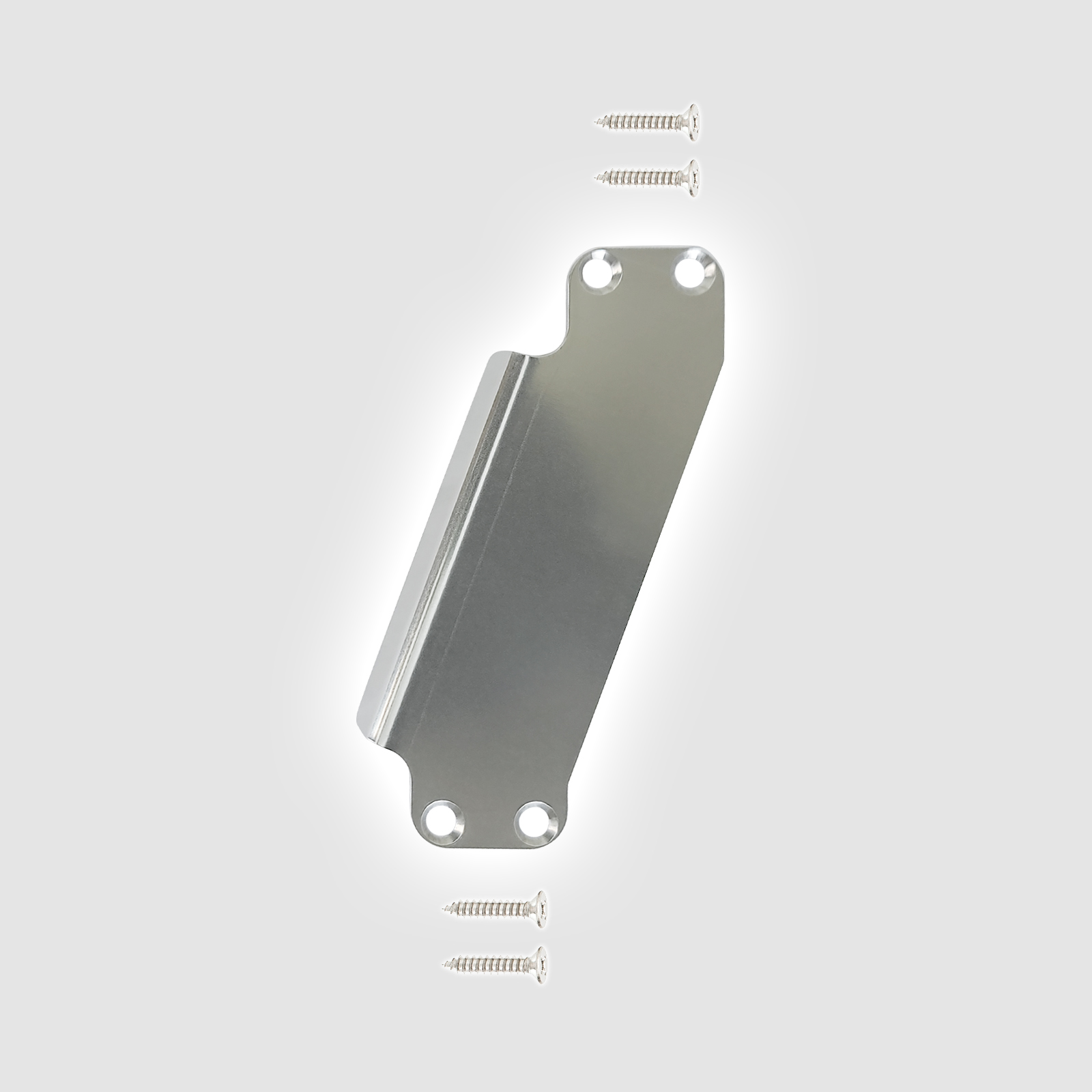

- 1x MultiScale Foot Plate

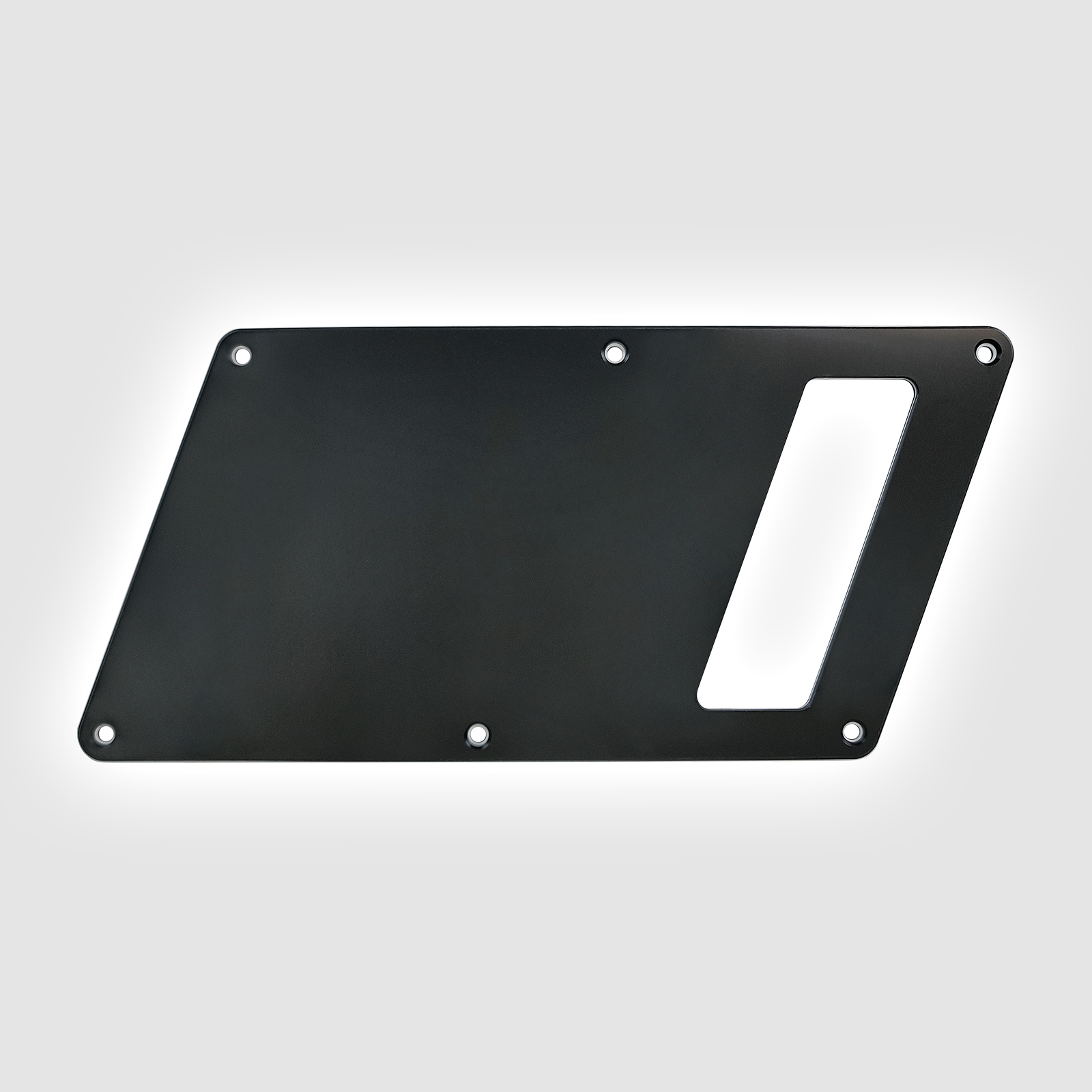

- 1x MultiScale Backplate (Black Plastic)
- 6x Backplate Screws (Black)
- 1x Hex Tuning Key (2.5mm)
- 7x extra Action Screws
(If the installed set of action screws is 8mm then the service pack will have 10mm screws; if the installed set is 10mm then the service pack will have 8mm screws.)

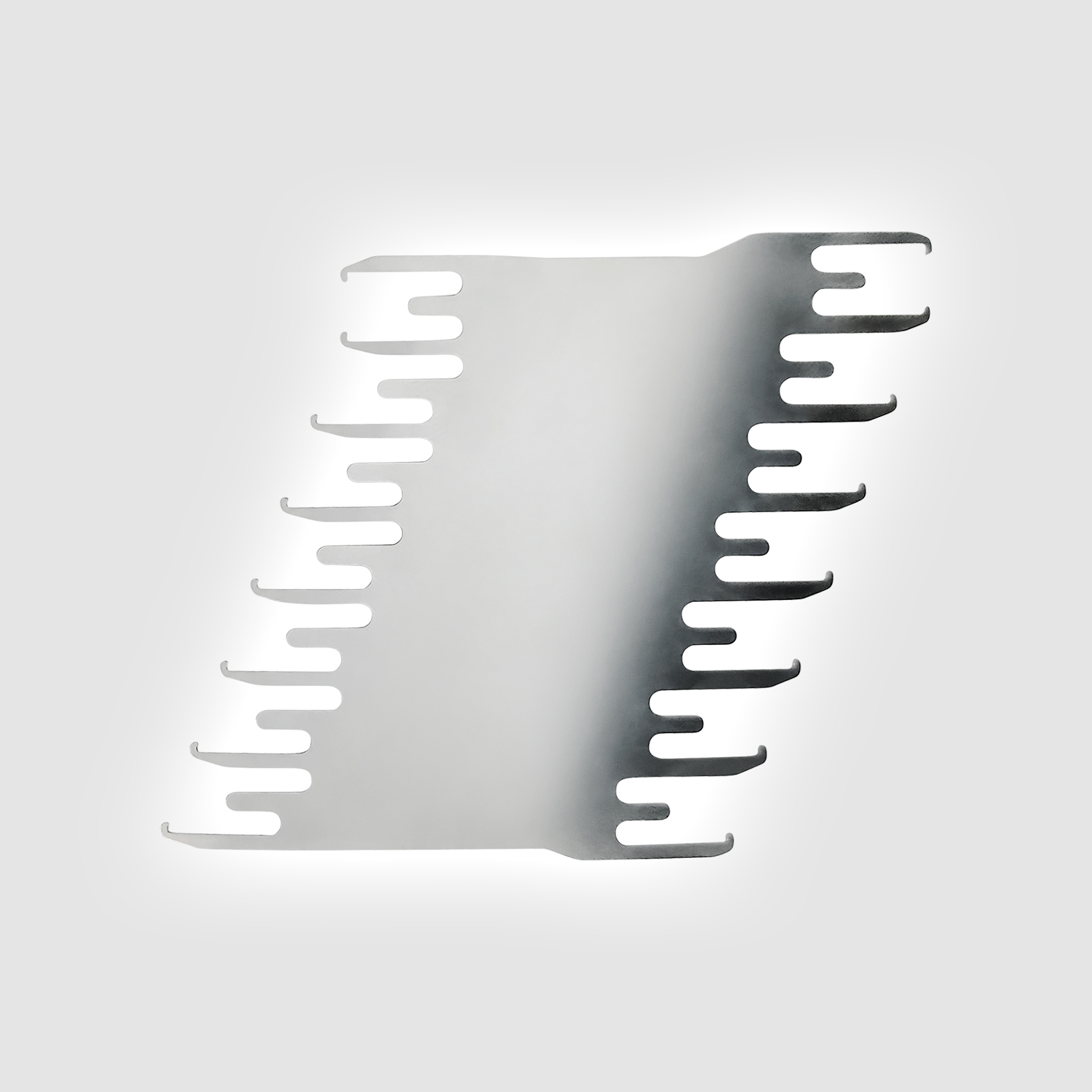

- 1x extra Small MultiScale Comb
- 1x Owners Manual (Printed)
Installation notes
Minimum Body thickness for an F7 install is 1 3/4”.
Any guitar body thickness less than 1 3/4” will require the foot plate to be installed on top of a custom back plate riser to ensure proper positioning of the modules.
Zone 2 Variation Tolerance
Zone 2 can have some slight variation. If the pitch change is less than 7 cents from playing position to one half turn down into Zone 2 then the module's Zone 2 is within spec.
One half turn means loosening the tuning peg at the headstock by a turn of the wrist.
