Instructions / Drawings / CAD For Bridge Installation

Here can be found the dimensioned diagrams of the bridge and the route pocket in the guitar, as well as written installation instructions. The files are in PDF, DXF, and STP format.

Contents

F & T model

Installation Notes: Minimum Body thickness for an F&T install is 1 3/4”.

Any guitar body thickness less than 1 3/4” will require the foot plate to be installed on top of a custom back plate riser to ensure proper positioning of the modules.

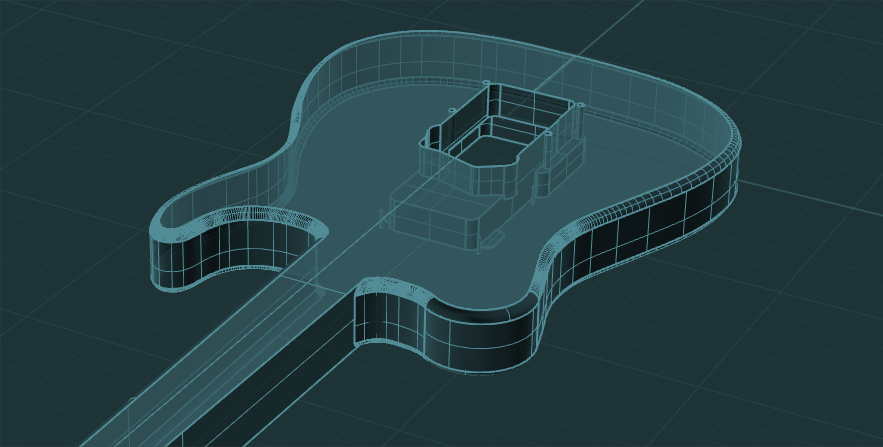

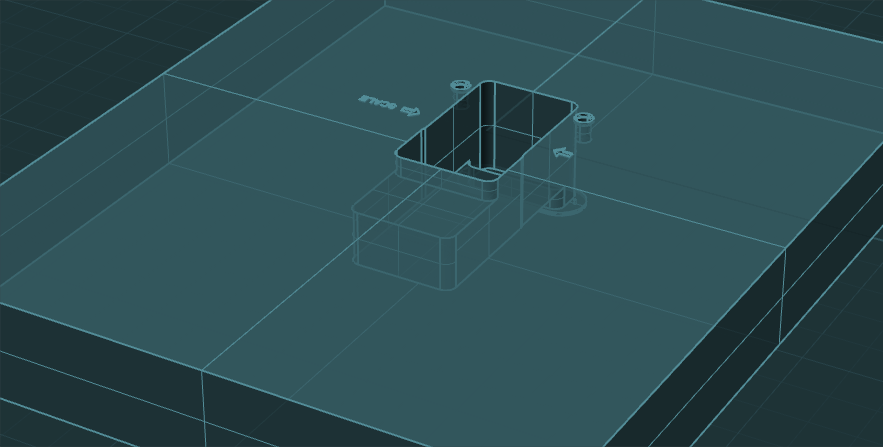

  • F Model Guitar Cavity CAD

    F Model Guitar Cavity CAD

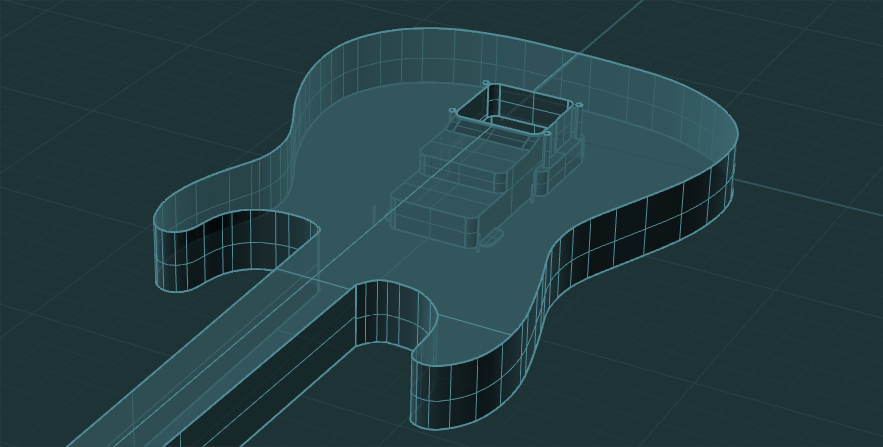

  • T Model Guitar Cavity CAD

    T Model Guitar Cavity CAD

  F & T Model Router Template Instructions (PDF)

  F & T Model Faceplate Dimensions (PDF)

  F Model Routed Pocket Dimensions (PDF)

  F Model Guitar Cavity CAD (DXF)

  F Model Guitar Cavity CAD (STEP)

  • T Model Guitar Cavity CAD

    T Model Guitar Cavity CAD

  T Model Routed Pocket Dimensions (PDF)

  T Model Guitar Cavity CAD (DXF)

  T Model Guitar Cavity CAD (STEP)

G model

Installation Notes: The guitar body has to be 2.1” to do a standard G model installation where you recess the two back plate covers on the back of the guitar. Any guitar that requires a G model bridge with a body thickness of less than 2.1” will be a route through body installation and will require a F or T model back plate to cover the route pocket on the back. We recommend the T back plate for route through body installations due to the smaller footprint.

To recess the footplate, the guitar body has to be at least 1 7/8” in order not to have to use a custom back plate riser.
Any guitar body thickness less than 1 3/4” will require the foot plate to be installed on top of a custom back plate riser to ensure proper positioning of the modules.

G model Standard or G model Long: If the bridge pickup is 5/8” or less from the scale length line, the G model Standard bridge is required.
If the bridge pickup is more than 5/8” from the scale length line, the G model Long bridge is required and these almost always need to be milled down for an exact fit.

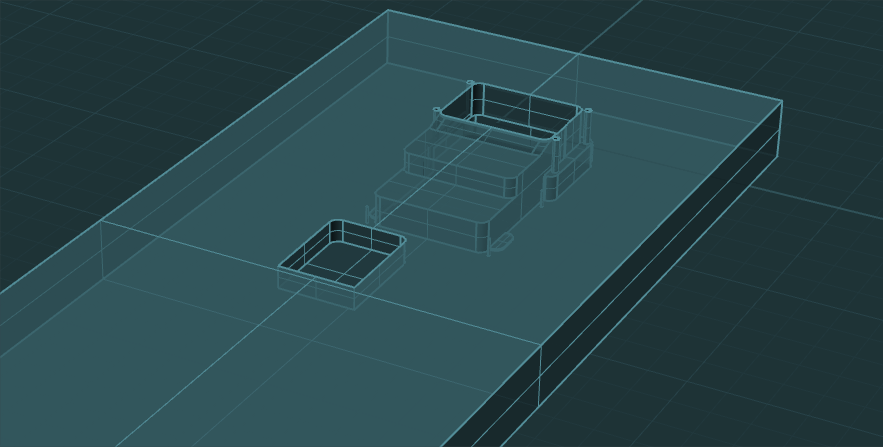

  • G Model Guitar Cavity CAD

    G Model Guitar Cavity CAD

  G Model Router Template Instructions (PDF)

  G Model Faceplate Dimensions (PDF)

  G Model Routed Pocket Dimensions (PDF)

  G Model Guitar Cavity CAD (DXF)

  G Model Guitar Cavity CAD (STEP)

F7 model (7 string)

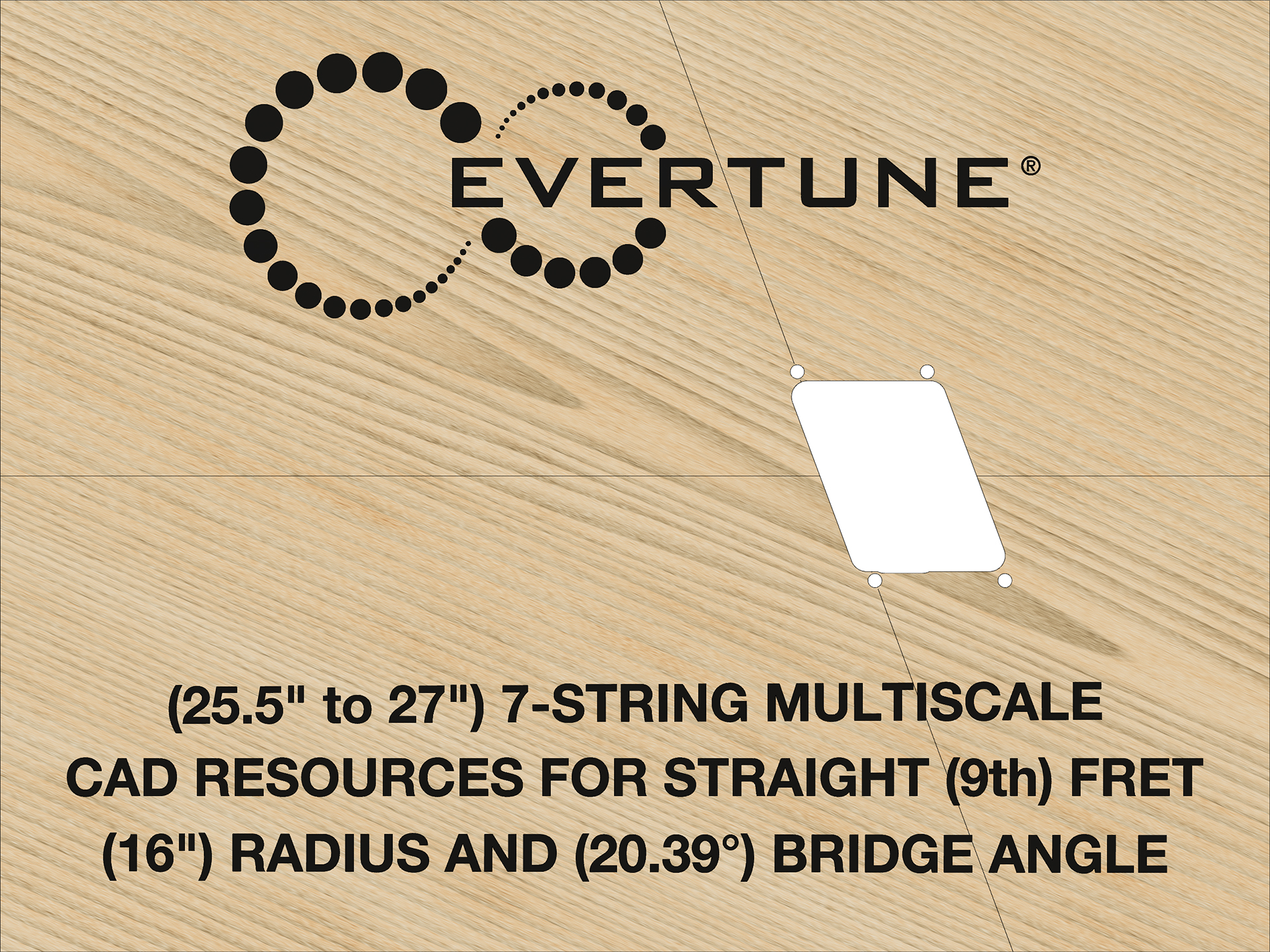

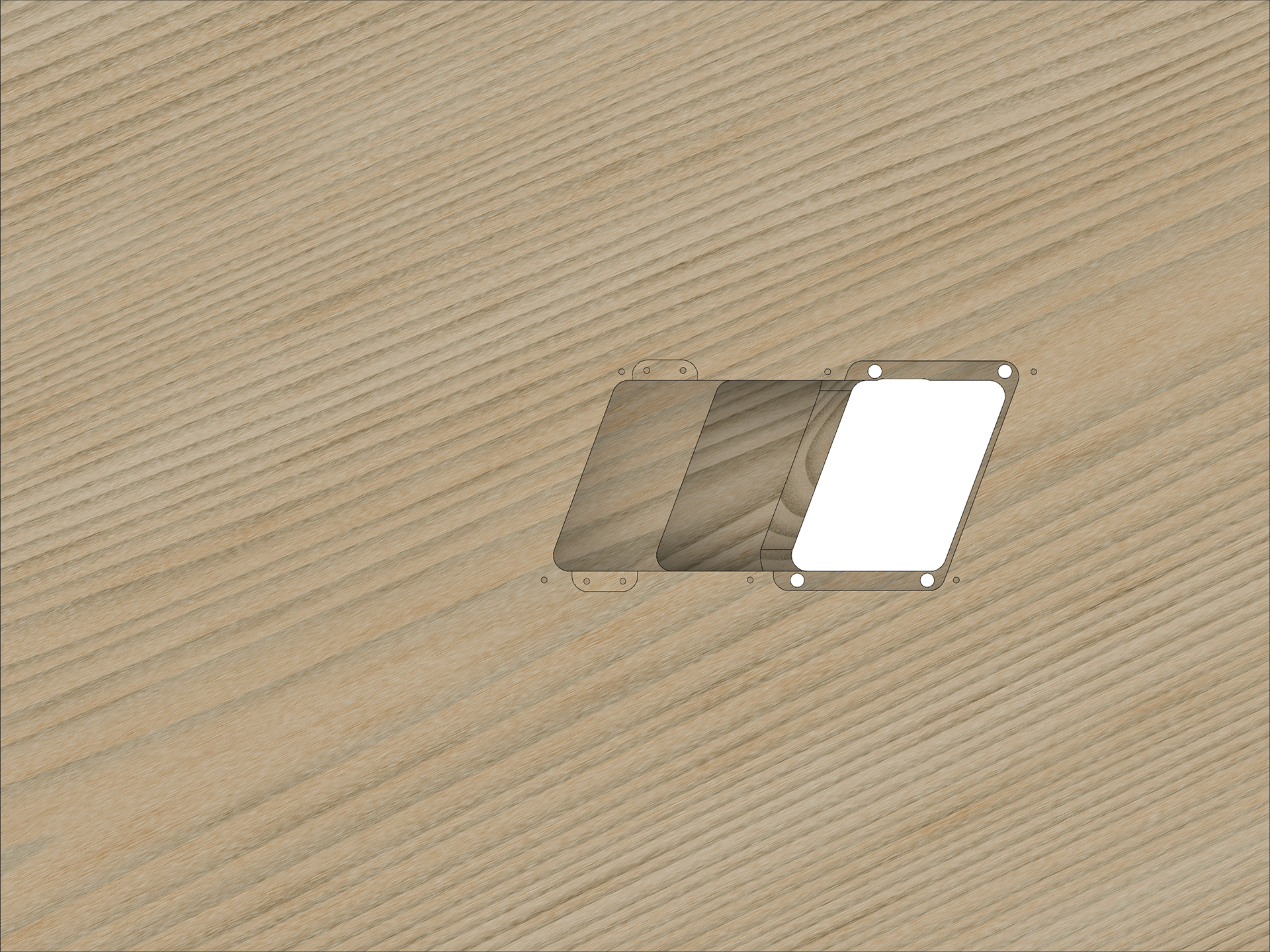

  • F7 Model Guitar Cavity CAD

    F7 Model Guitar Cavity CAD

  7 STRING MODEL Routed Pocket Dimensions (PDF)

  7 STRING MODEL Guitar Cavity CAD (DXF)

F8 model (8 string)

  • F8 Model Guitar Cavity CAD

    F8 Model Guitar Cavity CAD

  8 STRING MODEL Routed Pocket Dimensions (PDF)

  8 STRING MODEL Overall Bridge Dimensions (PDF)

  8 STRING MODEL Guitar Cavity CAD (DXF)

  8 STRING MODEL Guitar Cavity CAD (STEP)
